Mercury 24 and 27 All-in-one DIY Chassis for Consumer

  • Screen Size
    23.8" and 27"
  • Designed for
    DIY and Custom-Build Computer Users
  • Image
    Comfortable and Low-Profile Luxury
  • Consumer Features

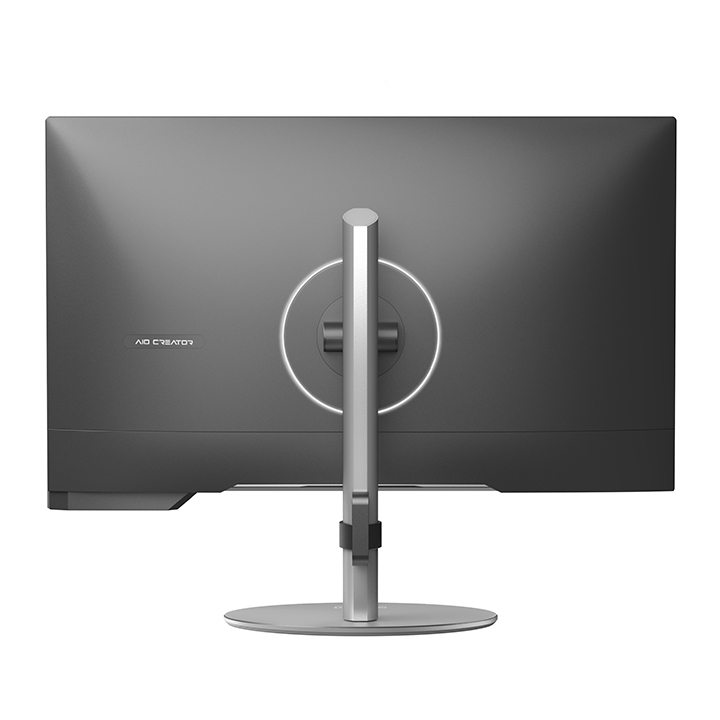

    Lighting Circle on Back Chassis
  • Performance
    Support Desktop 65W i7 CPU, 64GB Memory, 4TB M.2 NVMe SSD, Wi-Fi6E and Bluetooth 5.2, 2 x 2.5" HDD, Ergonomics Stand
  • Exclusive DIY Features

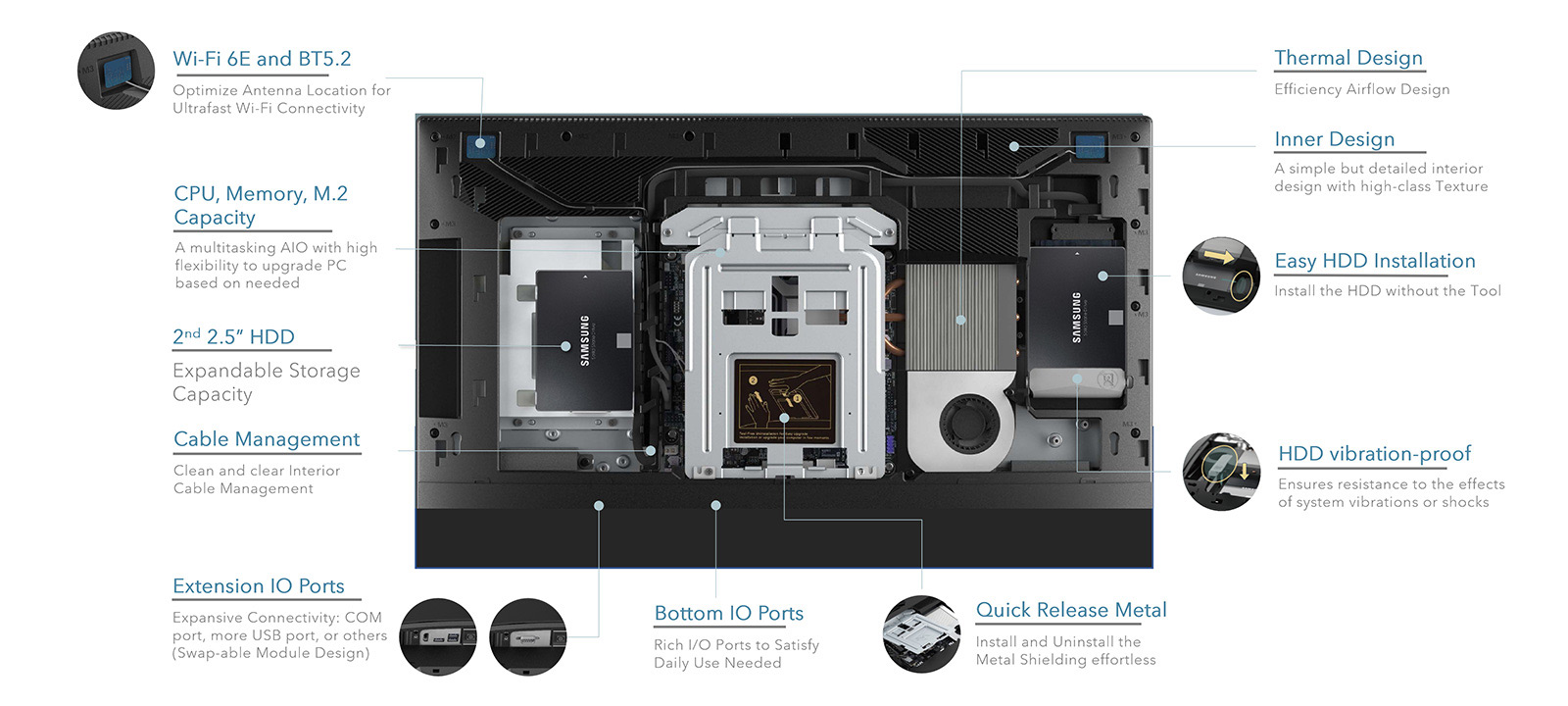

    Tool-less Chassis. Easy assemble CPU, Memory, SSD. Quick-Connect HDD Installation. Internal Cable Management
  • Color

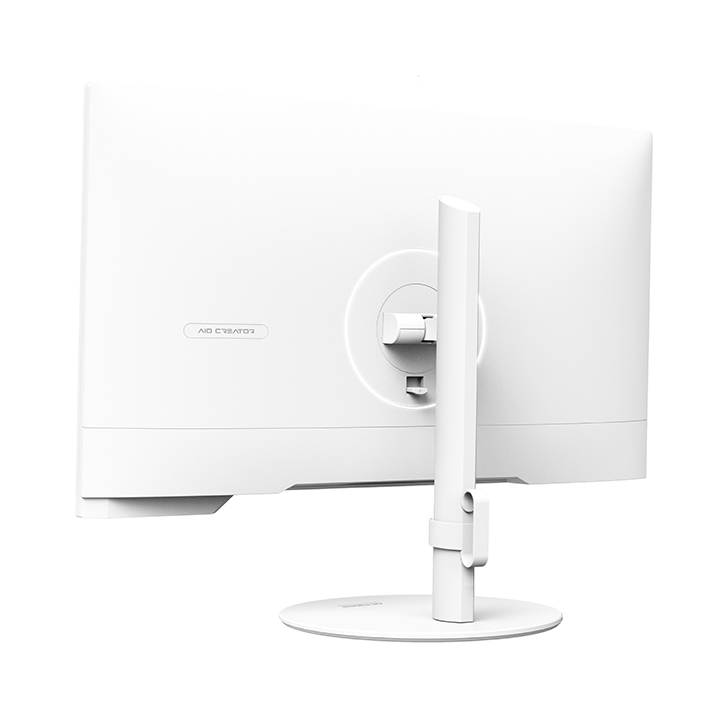

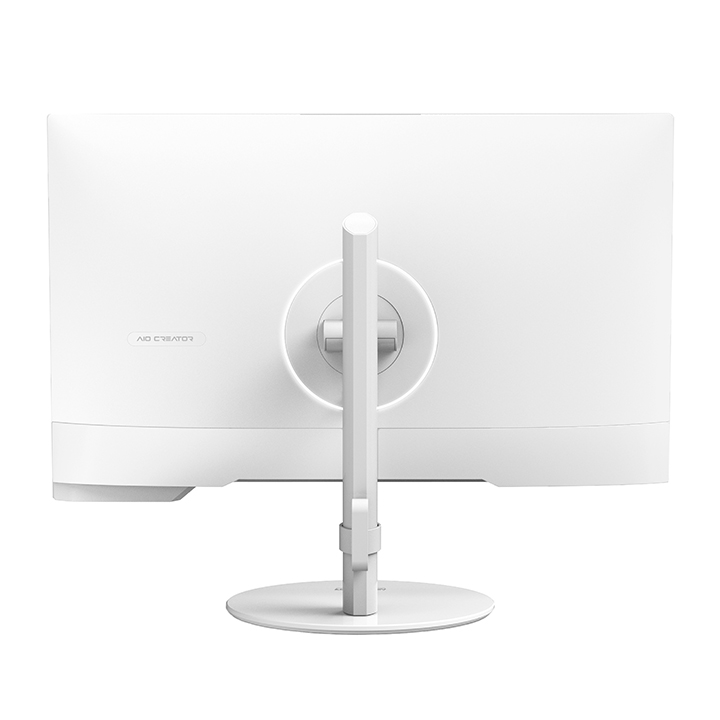

    Black / White

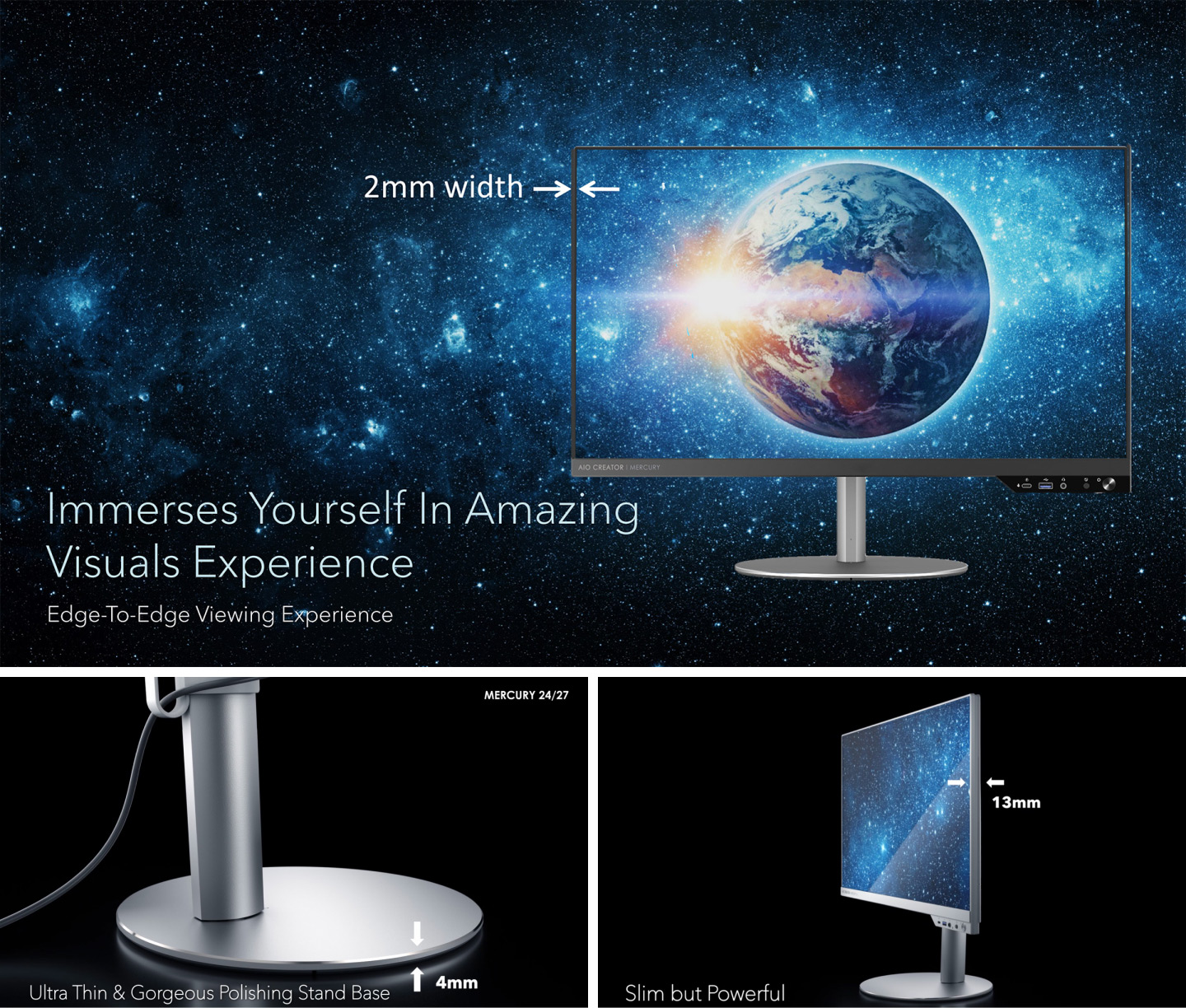

SLIM DESIGN

Desktop CPU Performancewith Skinny Body

SIZE & COLOR
23.8” and 27” Screen Size with Family Looking

CPU/Memory Support

Drivers

ASUS Motherboard Driver
Wireless

BIOS

FAQ

  • Work with our partners to do local Youtube and Forum Marketing
  • High-Resolution Product Pictures
  • Product Introduction Sales Kit
  • Video
  1. Bundle famous ASUS motherboard
  2. Tool-less open chassis
  3. Tool-less HDD installation and vibration-proof clip
  4. Special cable tunnel and cable cover
  5. Too-less Quick-Release Stand

Manual

User Guide

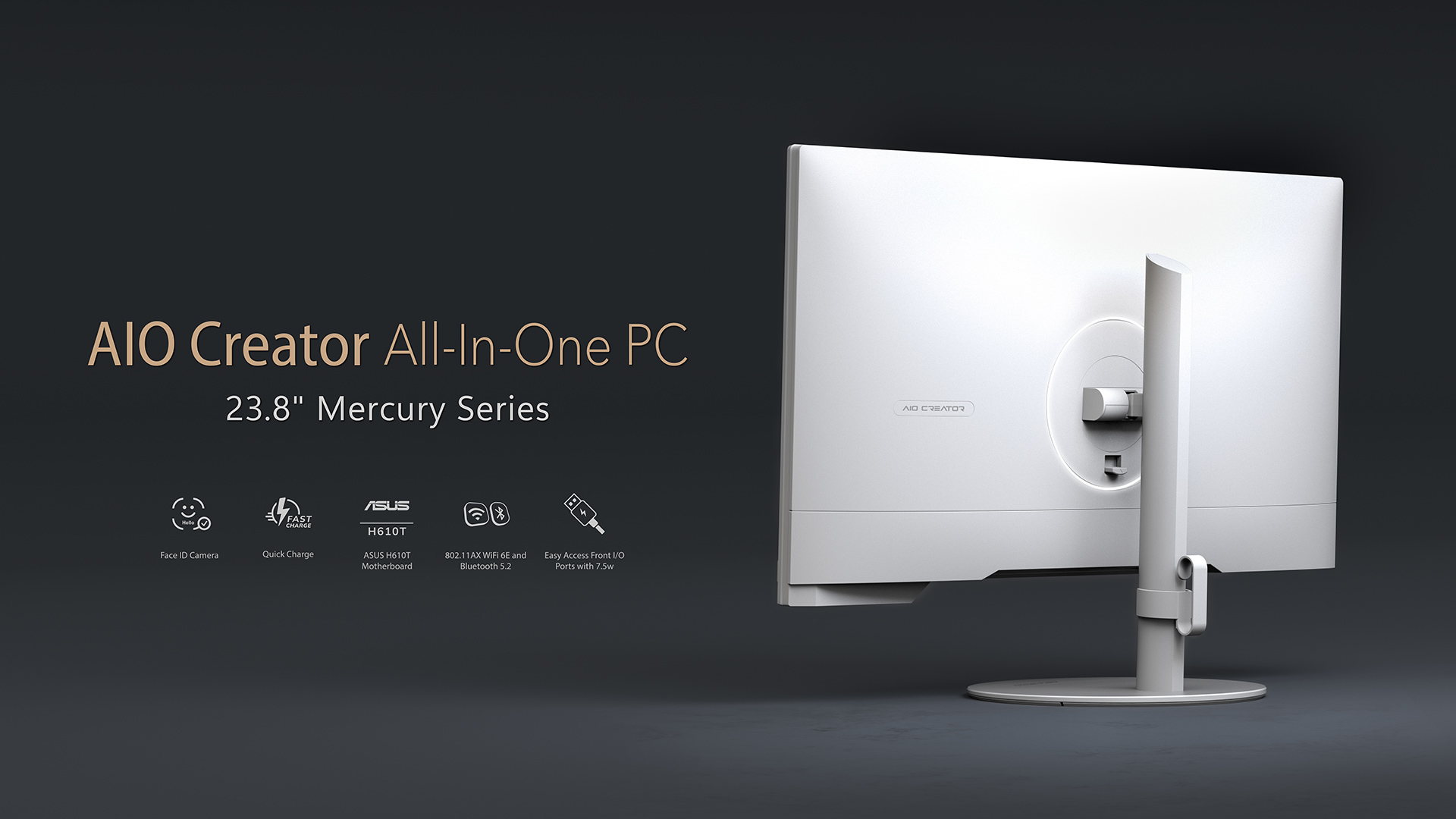

Mercury

The Essence of Transition of All in One PC

Mercury, represents the essence of transition, which transforms your All in One PC from a PC to a decoration of your working space. A stunning All-in-One (AIO) DIY Chassis designed specifically for the consumer users to deliver a romantic and low-profile luxury feeling. It is a perfect balance of aesthetics and technology, combining luxurious design with remarkable performance with featuring a stylish back chassis and stand.

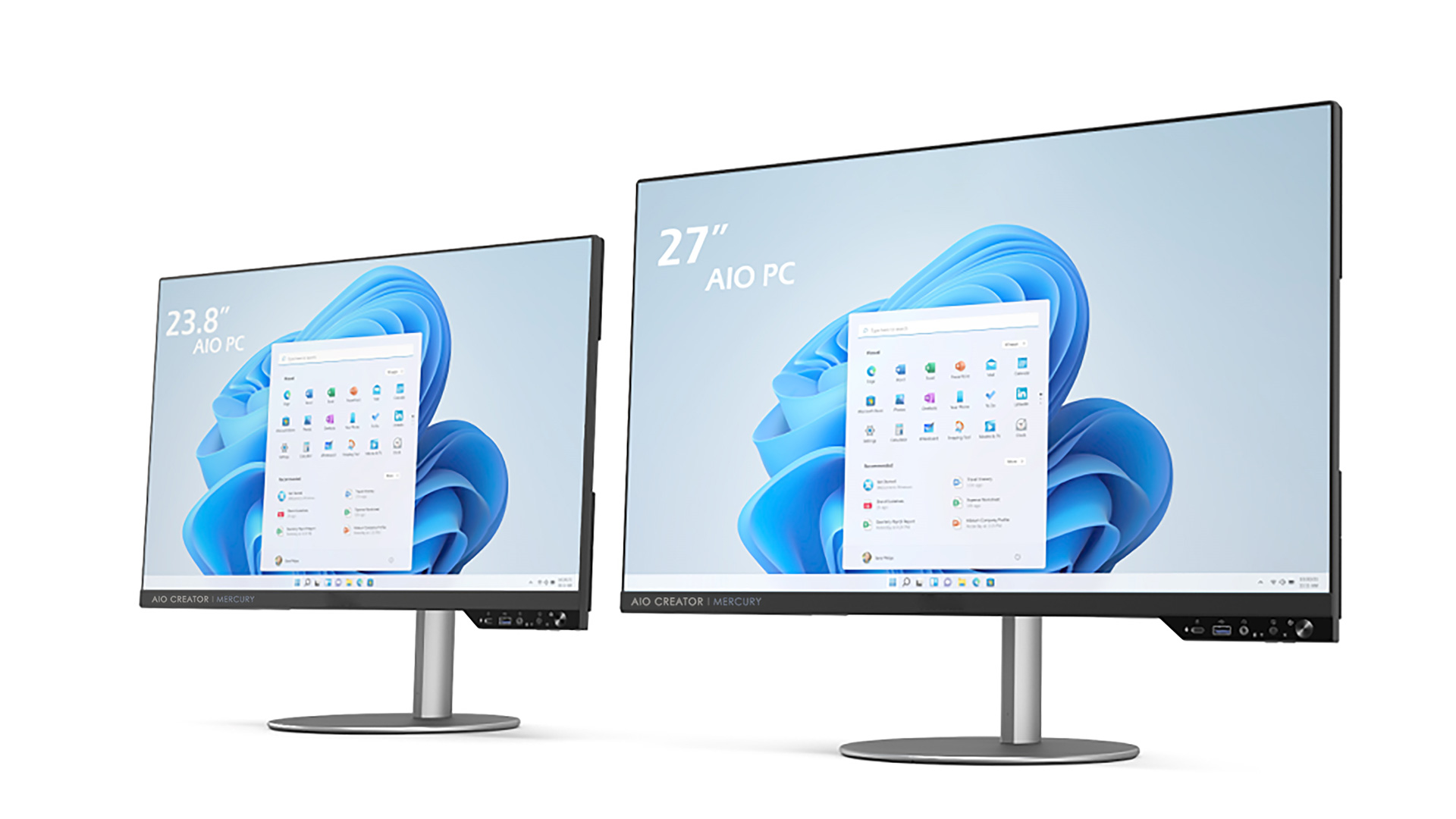

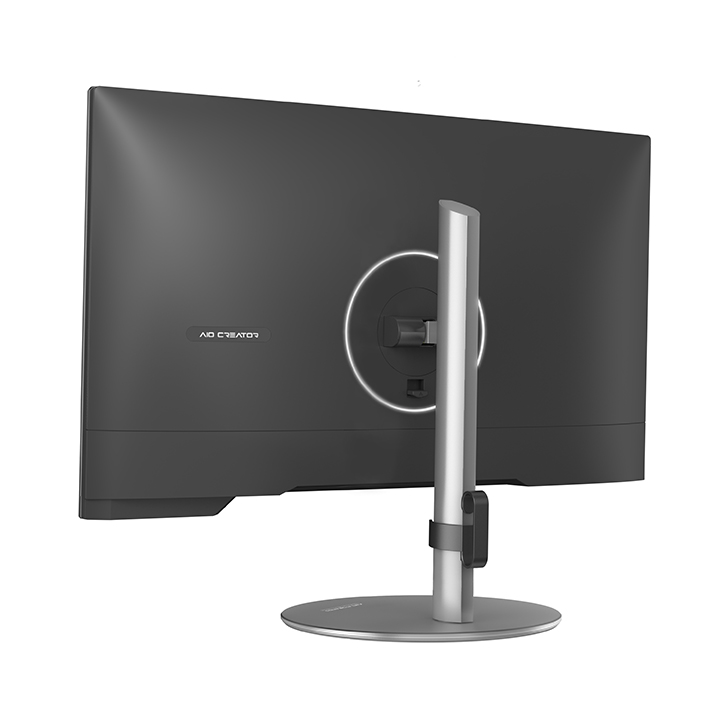

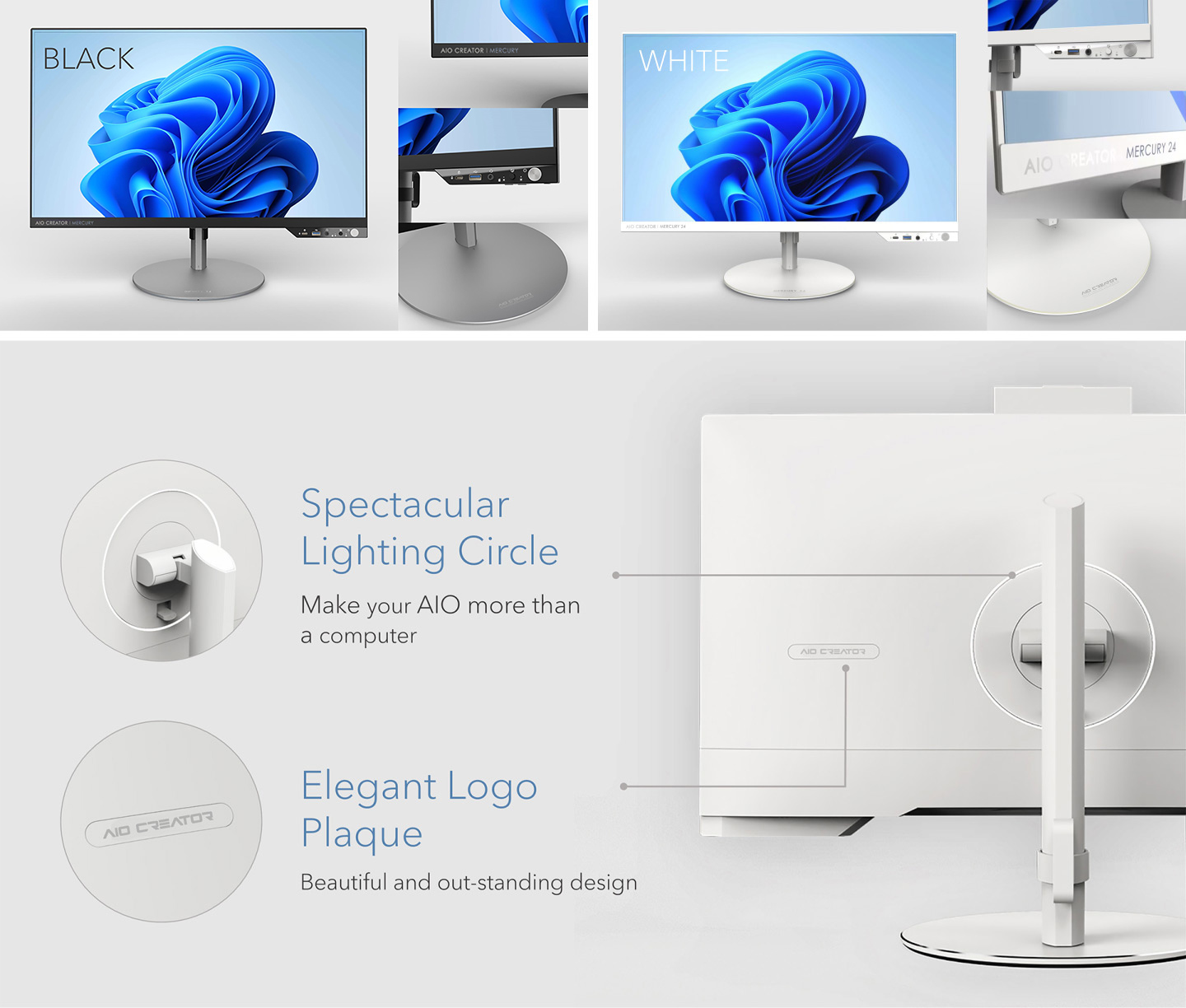

With two AIO screen sizes from Mercury 24 (23.8”) to Mercury 27 (27“), you can select the perfect size for your needs. Mercury features a gleaming white lighting circle and a beautiful nameplate on the back chassis both compose an outstanding appearance of Mercury. Mercury also takes in premium aluminum-alloy solid round stand with a stable and sturdy foundation.

Mercury All-in-One PC Chassis is perfect for Computer DIY and Custom-Build PC users who want to assemble the computer based on their requirements. With Mercury, users can easily choose the CPU, Memory, SSD, and HDD, and upgrade these components in the future.

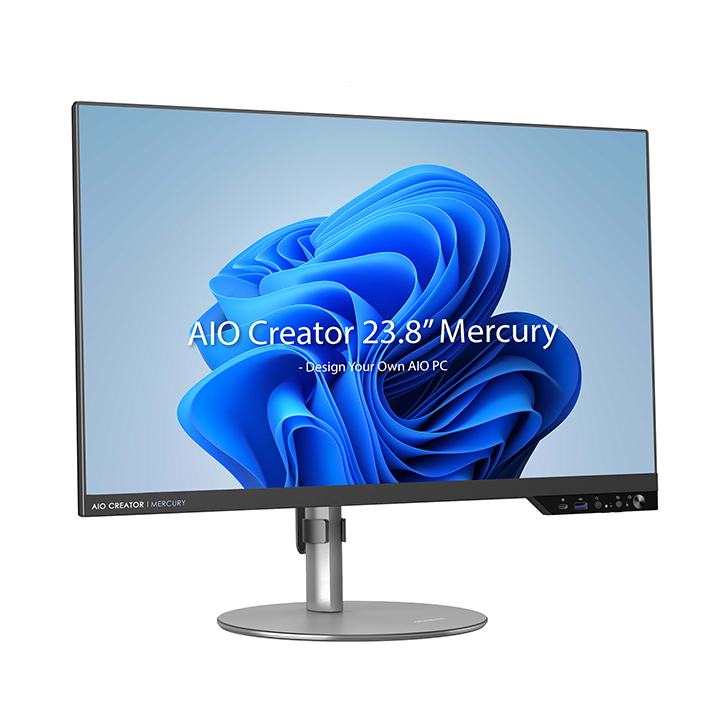

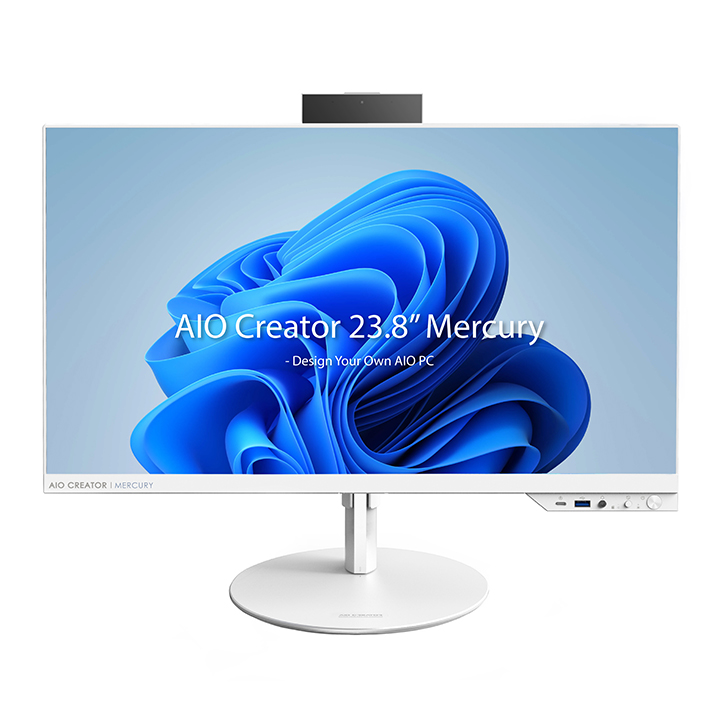

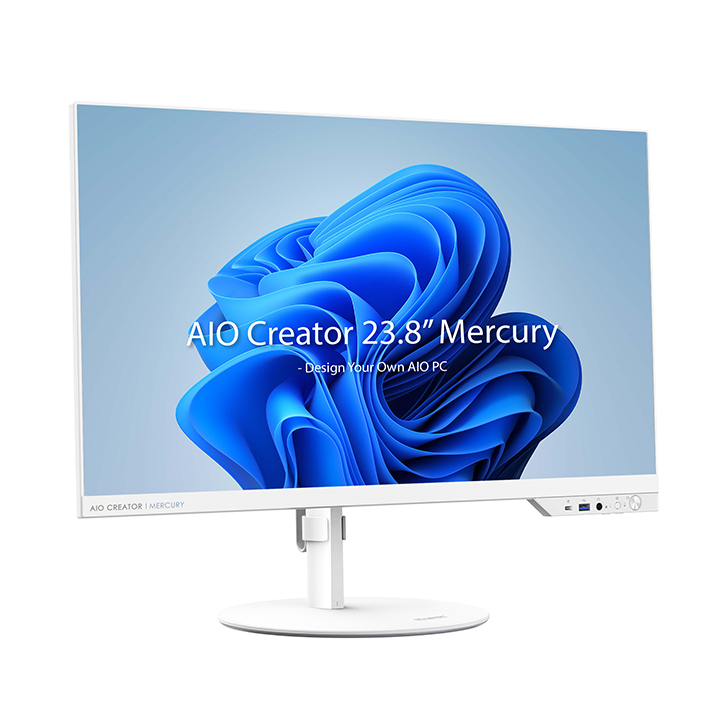

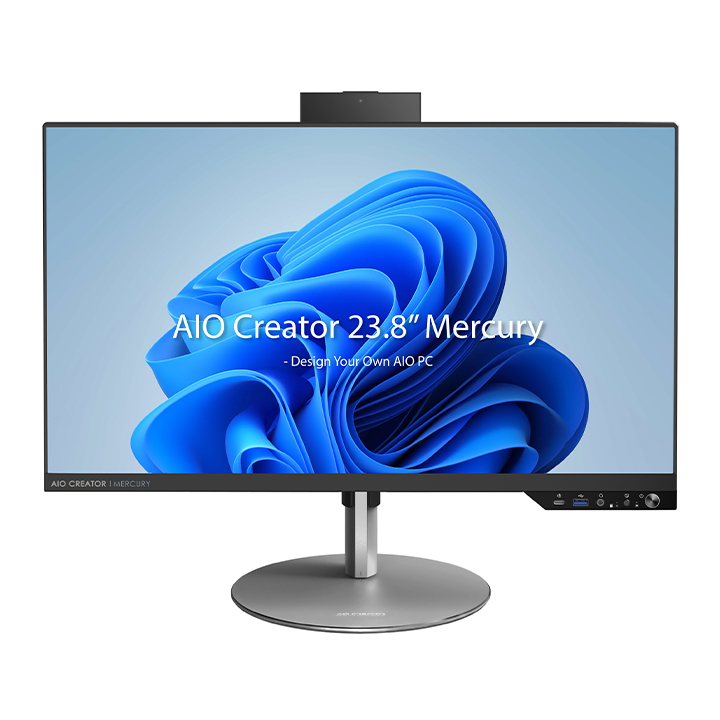

Mercury 24 (23.8“)

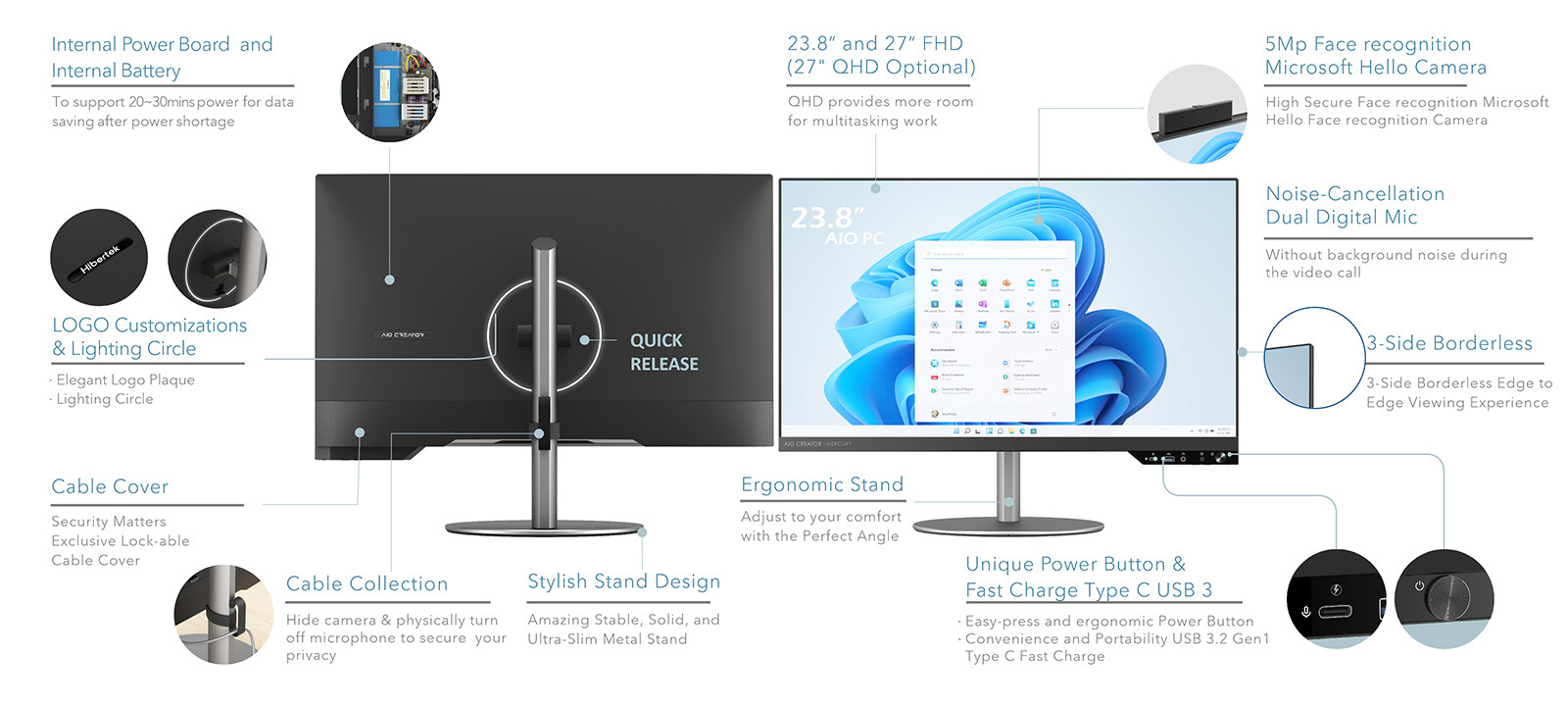

Highlight Front I/O Ports with USB Type C Quick Charging
Face Recognition Windows Hello Camera
Dual Digital Microphones for Noise-Cancellation
Tool-Less Chassis Design for Saving Assembly Cost and Easy Upgrade
Display 23.8 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot
Motherboard Bundle with ASUS H610T Motherboard
Support Standard 170 x 170 mm Thin Mini ITX Motherboard
Processor Intel Socket LGA1700 for 13th / 12th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors Up to 65W
Memory Support SO-DIMM, Max. 64GB. DDR4 or DDR5 (depend on motherboard specification)
Storage 1 x M.2 M key 2280 SSD (Supports PCIe & SATA mode)
2 x 2.5” Tool-Less Installation of Hard Disk Drive / Solid-State Drive Space
Camera Pop-Up Camera Housing
5Mp 2592 x 1944 Camera with Dual Microphone
Wireless M.2 Wi-Fi 6 / 6E (802.11ax) + Bluetooth5.2
Logo Logo Plate
Lighting Circle with White Luminance
Front IO 1 x USB3.2 Gen1 Type A
1 x USB3.2 Gen1 Type C with 7.5W Quick Charge Support
1 x 3.5mm Audio Combo Jack
1 x SD Card Reader (SD / SDHC / SDXC / MMC)
Back IO 2 x USB 3.2 Gen 2 ports
2 x USB 2.0 ports
1 x DisplayPort out
1 x HDMI-Out
1 x Gigabit Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Speaker 2 x 3W Speakers
Security Kensington Lock
Cable Cover with Screws
Power 120W External Power Adaptor with Power Cord
High Adjustable Stand Tool-Less Quick Release Design
Elevation: 130 mm
Tilt: -15°~25°
Swivel: -30°~30°
Rotation: -90°~90°
Mercury 27 (27”)
Highlight Front I/O Ports with USB Type C Quick Charging
Face Recognition Windows Hello Camera
Dual Digital Microphones for Noise-Cancellation
Tool-Less Chassis Design for Saving Assembly Cost and Easy Upgrade
Display 27 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot
Support QHD
Motherboard Bundle with ASUS H610T Motherboard
Support Standard 170 x 170 mm Thin Mini ITX Motherboard
Processor Intel Socket LGA1700 for 13th / 12th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors Up to 65W
Memory Support SO-DIMM, Max. 64GB. DDR4 or DDR5 (depend on motherboard specification)
Storage 1 x M.2 M key 2280 SSD (Supports PCIe & SATA mode)
2 x 2.5“ Tool-Less Installation of Hard Disk Drive / Solid-State Drive Space
Camera Pop-Up Camera Housing
5Mp 2592 x 1944 Camera with Dual Microphone
Wireless M.2 Wi-Fi 6 / 6E (802.11ax) + Bluetooth5.2
Logo Logo Plate
Lighting Circle with White Luminance
Front IO 1 x USB3.2 Gen1 Type A
1 x USB3.2 Gen1 Type C with 7.5W Quick Charge Support
1 x 3.5mm Audio Combo Jack
1 x SD Card Reader (SD / SDHC / SDXC / MMC)
Back IO 2 x USB 3.2 Gen 2 ports
2 x USB 2.0 ports
1 x DisplayPort out
1 x HDMI-Out
1 x Gigabit Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Speaker 2 x 3W Speakers
Security Kensington Lock
Cable Cover with Screws
Power 120W External Power Adaptor with Power Cord
High Adjustable Stand Tool-Less Quick Release Design
Elevation: 130 mm
Tilt: -15°~25°
Swivel: -30°~30°
Rotation: -90°~90°
